一、nacos注册中心原理

注册流程

image-20230524233710857

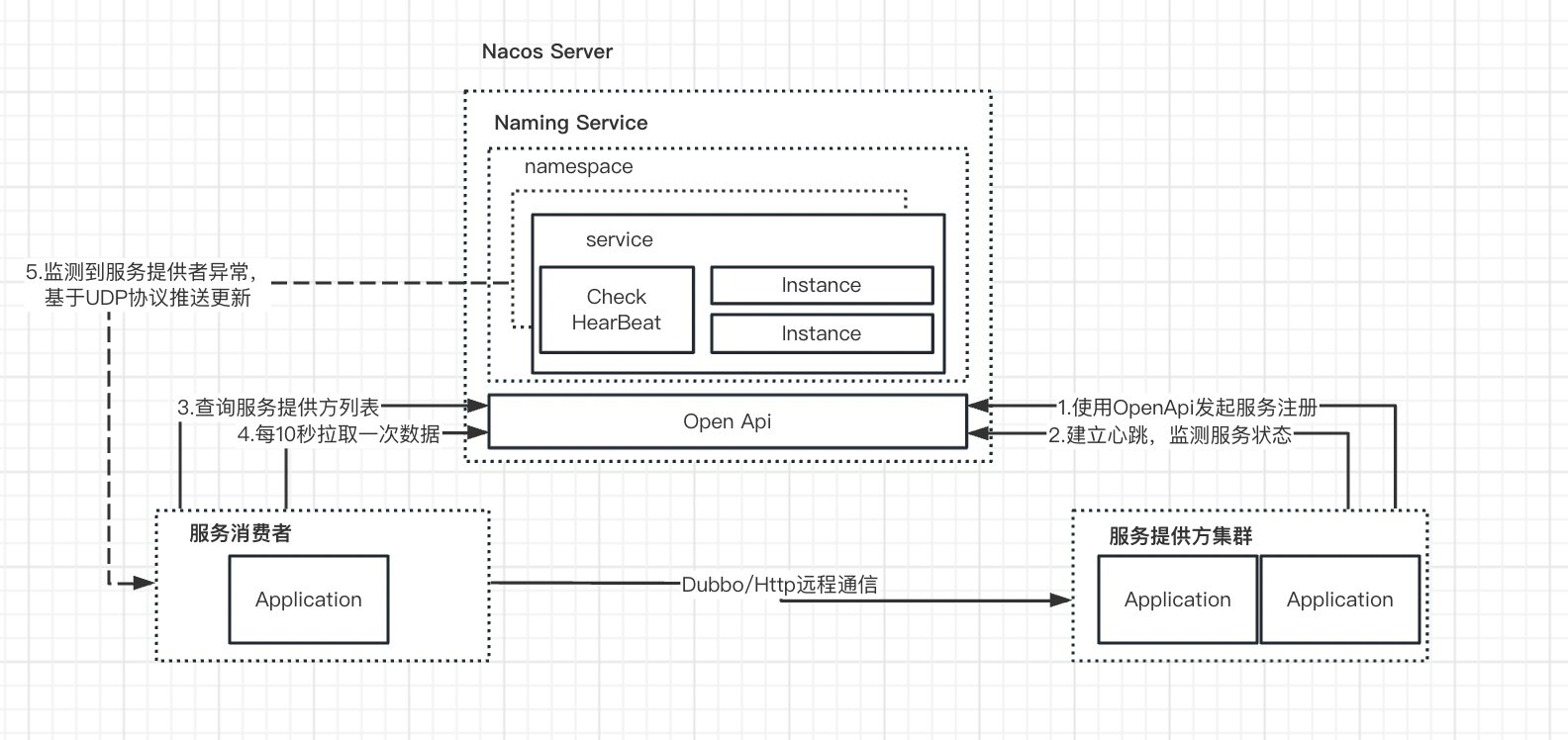

整个注册中心的注册和发现流程主要有三个方面来完成：服务的提供方（简称server）、服务的消费者（client）、注册中心（nacos）。

server和nacos的交互过程：

server需要通过nacos官方的OpenAPi提供的接口来发起服务注册请求，随后server会定时向nacos发送心跳来进行心跳检测，对于使用者来说这一步可以采用ScheduleExecutorService创建定时任务来完成。nacos会异步的处理注册请求和心跳任务。

nacos心跳机制

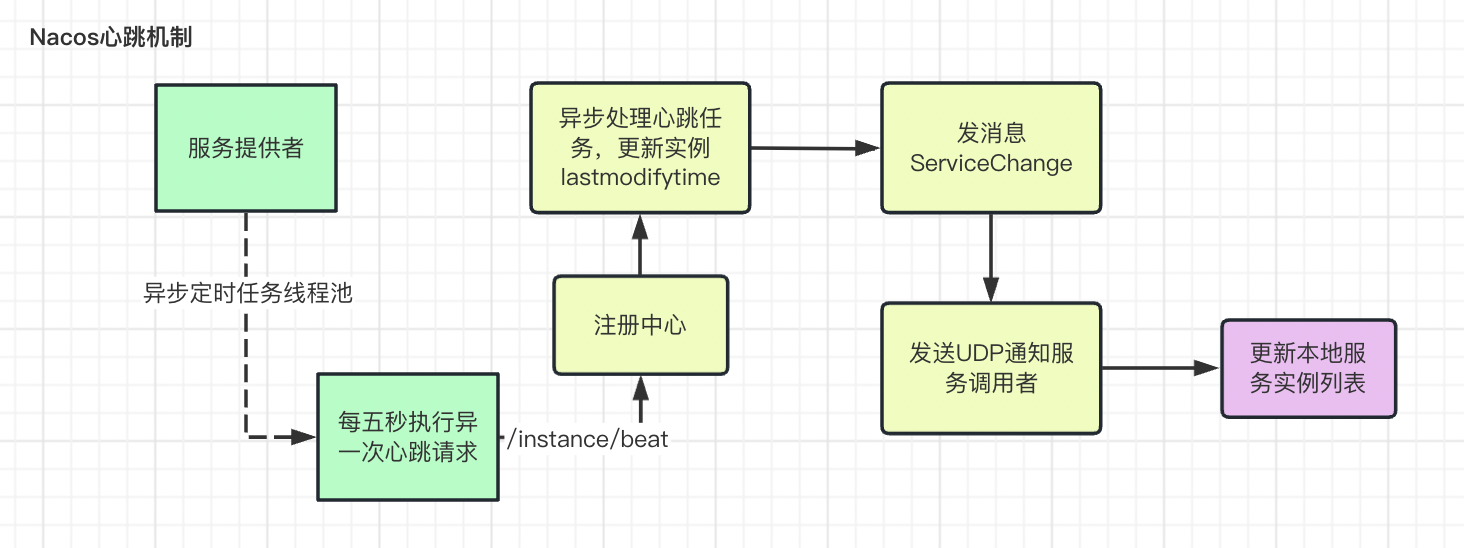

image-20230524234854641

nacos和client之间采用推拉结合的交互模式，一方面client可以通过定时任务每隔10s向nacos发起查询请求，如果服务列表改变nacos就返回新列表，另一方面当本地服务实例发生变化时（即server实例注册成功或心跳停止中断链接），nacos会主动通过UDP协议推送到client，udp协议非常快，不需要保持长链接。而注册中心的场景中client数量往往多于server，如果每一次服务更新，nacos要和成千上万的服务消费者去建立Tcp请求的话性能肯定是不行的。而如果UDP通知失败，客户端每10s还会主动去拉一次，客户端和服务器推送时互补的，这样既能保证server实例更新的实效性，又能提高效率。

分析nacos服务注册源码

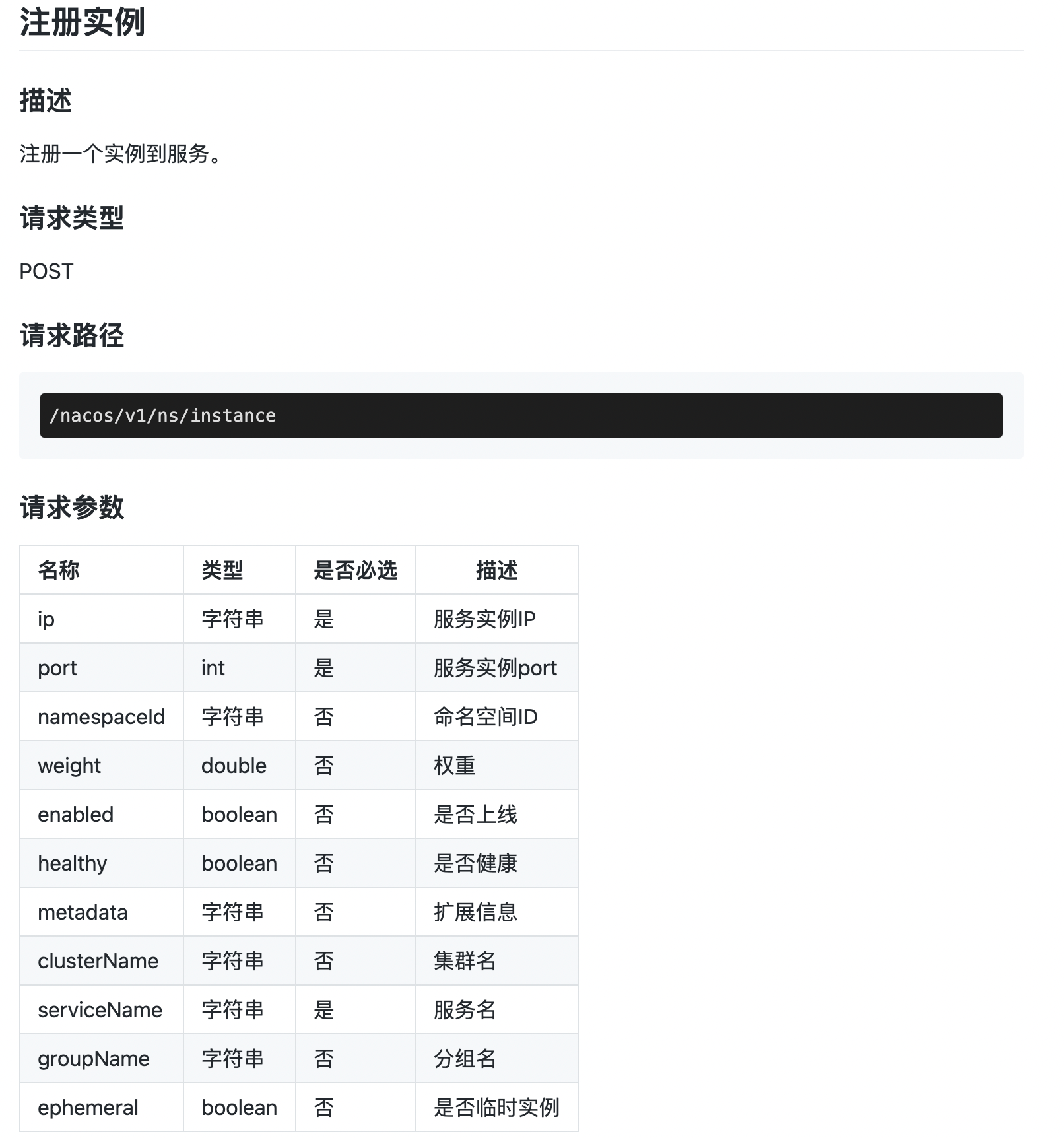

官方OpenApi服务注册

image-20230525000211142

源码运行

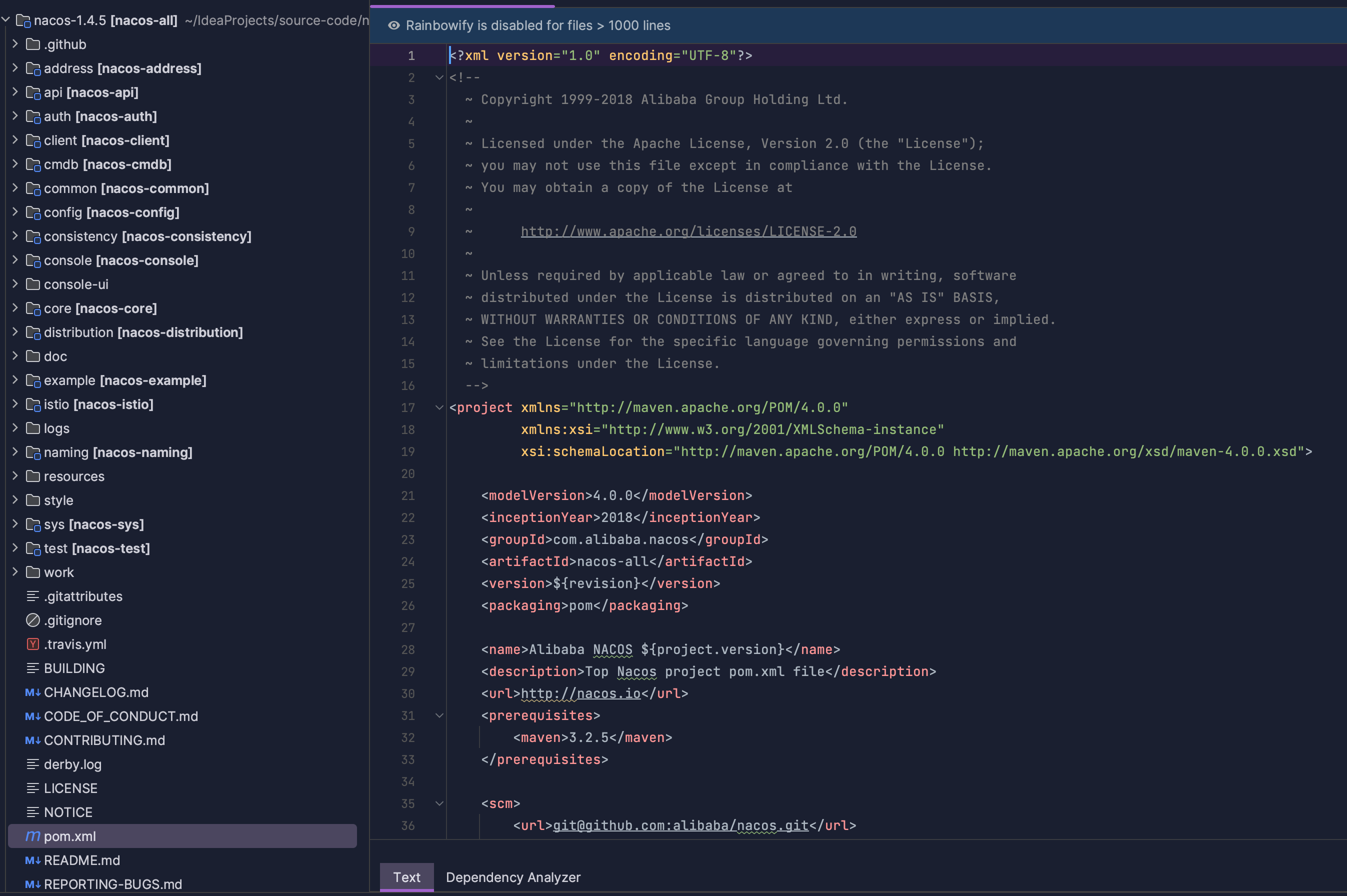

项目结构如下：（下载的版本是1.4.5 mac m1）

image-20230525232057058

项目启动在console模块，选择主程序Nacos运行

遇到问题

1. consistency模块实体类的缺失

image-20230525232424965

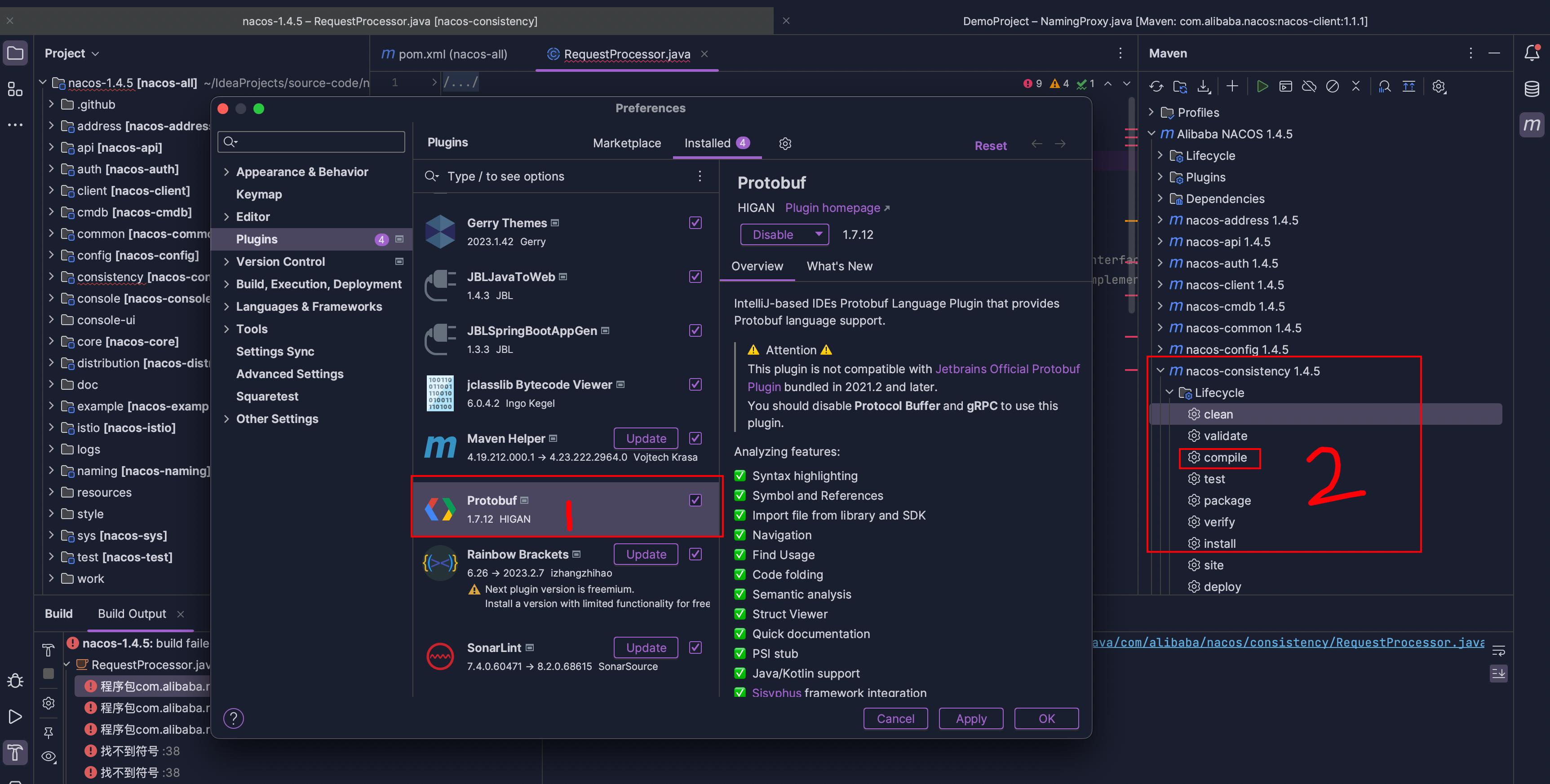

idea安装插件Protobuf插件，然后maven选择consistency模块complie进行编译

image-20230525232738659

maven 编译有问题，在maven的setting.xml文件中进行配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<settings>
  <activeProfiles>
    <activeProfile>
      apple-silicon
    </activeProfile>
  </activeProfiles>
  <profiles>
    <profile>
      <id>apple-silicon</id>
      <properties>
        <os.detected.classifier>osx-x86_64</os.detected.classifier>
      </properties>
    </profile>
  </profiles>
</settings>

重新进行compile，解决

启动报错Unable to start embedded Tomcat

在VM options 加入-Dnacos.standalone=trueimage-20230525233402397

数据库文件

在distribution模块下，创建数据库

image-20230525233611857

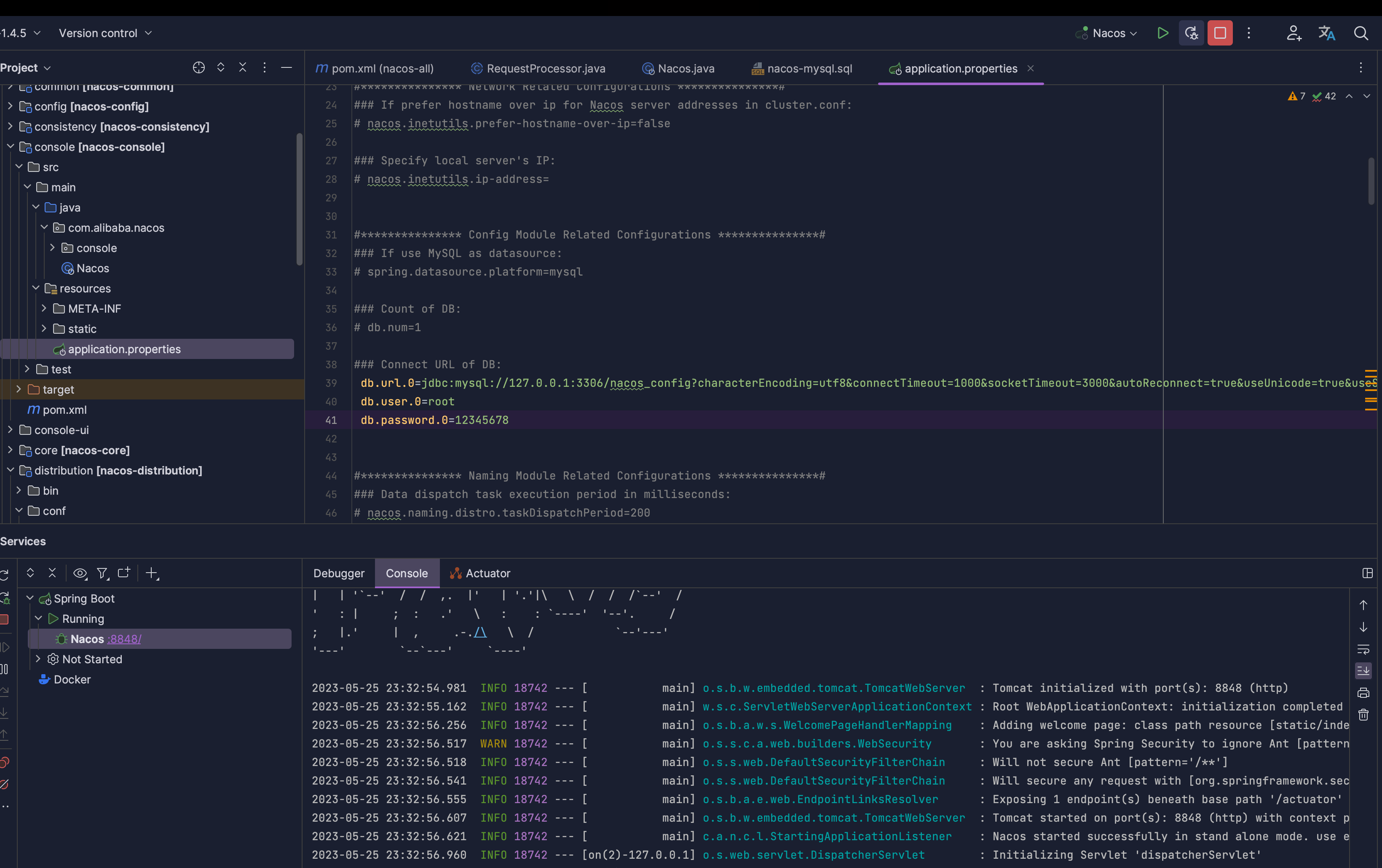

然后在console模块下application.properties 进行配置

image-20230525233653657

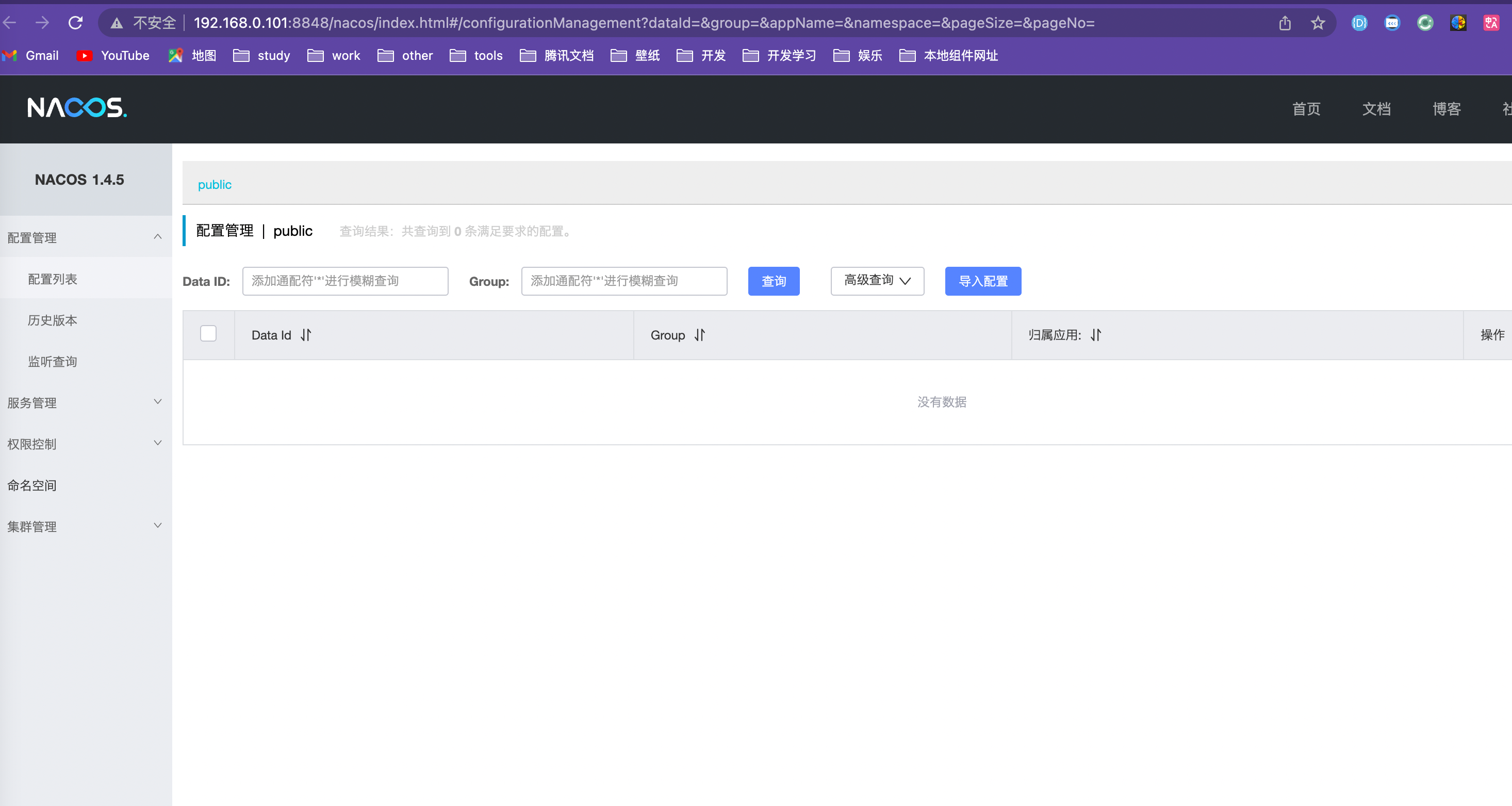

运行成功,访问nacos

image-20230525233801107

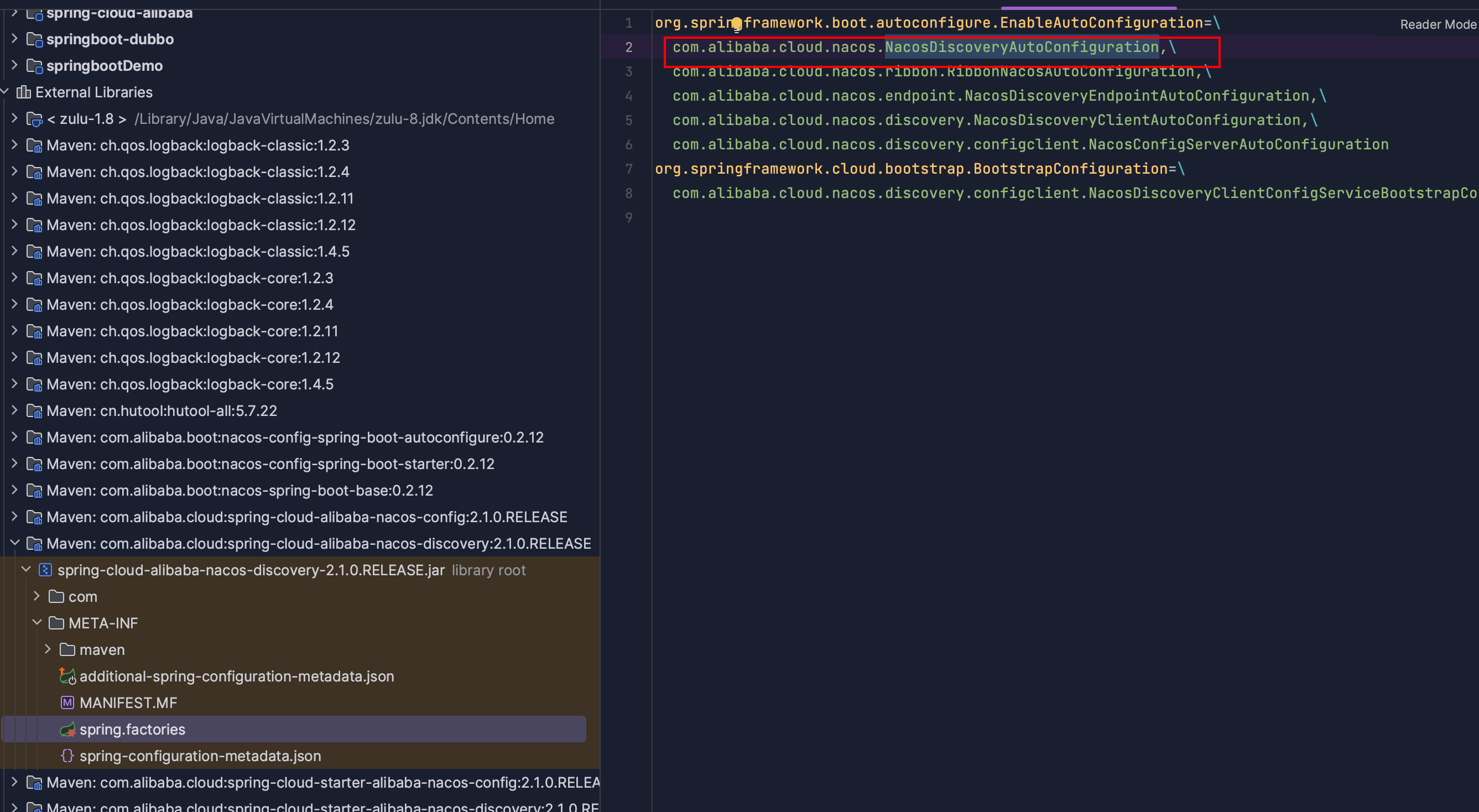

追踪源码image-20230525234244751

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
@Configuration
@EnableConfigurationProperties
@ConditionalOnNacosDiscoveryEnabled
@ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true)
@AutoConfigureAfter({ AutoServiceRegistrationConfiguration.class,
		AutoServiceRegistrationAutoConfiguration.class })
public class NacosDiscoveryAutoConfiguration {

	@Bean
	public NacosServiceRegistry nacosServiceRegistry(
			NacosDiscoveryProperties nacosDiscoveryProperties) {
		return new NacosServiceRegistry(nacosDiscoveryProperties);
	}

	@Bean
	@ConditionalOnBean(AutoServiceRegistrationProperties.class)
	public NacosRegistration nacosRegistration(
			NacosDiscoveryProperties nacosDiscoveryProperties,
			ApplicationContext context) {
		return new NacosRegistration(nacosDiscoveryProperties, context);
	}

	@Bean
	@ConditionalOnBean(AutoServiceRegistrationProperties.class)
	public NacosAutoServiceRegistration nacosAutoServiceRegistration(
			NacosServiceRegistry registry,
			AutoServiceRegistrationProperties autoServiceRegistrationProperties,
			NacosRegistration registration) {
		return new NacosAutoServiceRegistration(registry,
				autoServiceRegistrationProperties, registration);
	}
}

找到NacosAutoServiceRegistration继承的父类AbstractAutoServiceRegistration

追踪bind()方法

1
2
3
4
5
@Override
	@SuppressWarnings("deprecation")
	public void onApplicationEvent(WebServerInitializedEvent event) {
		bind(event);
	}
1
2
3
4
5
6
7
8
9
10
11
12
@Deprecated
	public void bind(WebServerInitializedEvent event) {
		ApplicationContext context = event.getApplicationContext();
		if (context instanceof ConfigurableWebServerApplicationContext) {
			if ("management".equals(((ConfigurableWebServerApplicationContext) context)
					.getServerNamespace())) {
				return;
			}
		}
		this.port.compareAndSet(0, event.getWebServer().getPort());
		this.start();
	}

跟踪start()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public void start() {
		if (!isEnabled()) {
			if (logger.isDebugEnabled()) {
				logger.debug("Discovery Lifecycle disabled. Not starting");
			}
			return;
		}

		// only initialize if nonSecurePort is greater than 0 and it isn't already running
		// because of containerPortInitializer below
		if (!this.running.get()) {
			this.context.publishEvent(
					new InstancePreRegisteredEvent(this, getRegistration()));
			register();
			if (shouldRegisterManagement()) {
				registerManagement();
			}
			this.context.publishEvent(
					new InstanceRegisteredEvent<>(this, getConfiguration()));
			this.running.compareAndSet(false, true);
		}

	}

进入register()方法

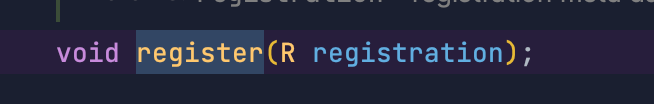

image-20230525234841564

image-20230525234902914

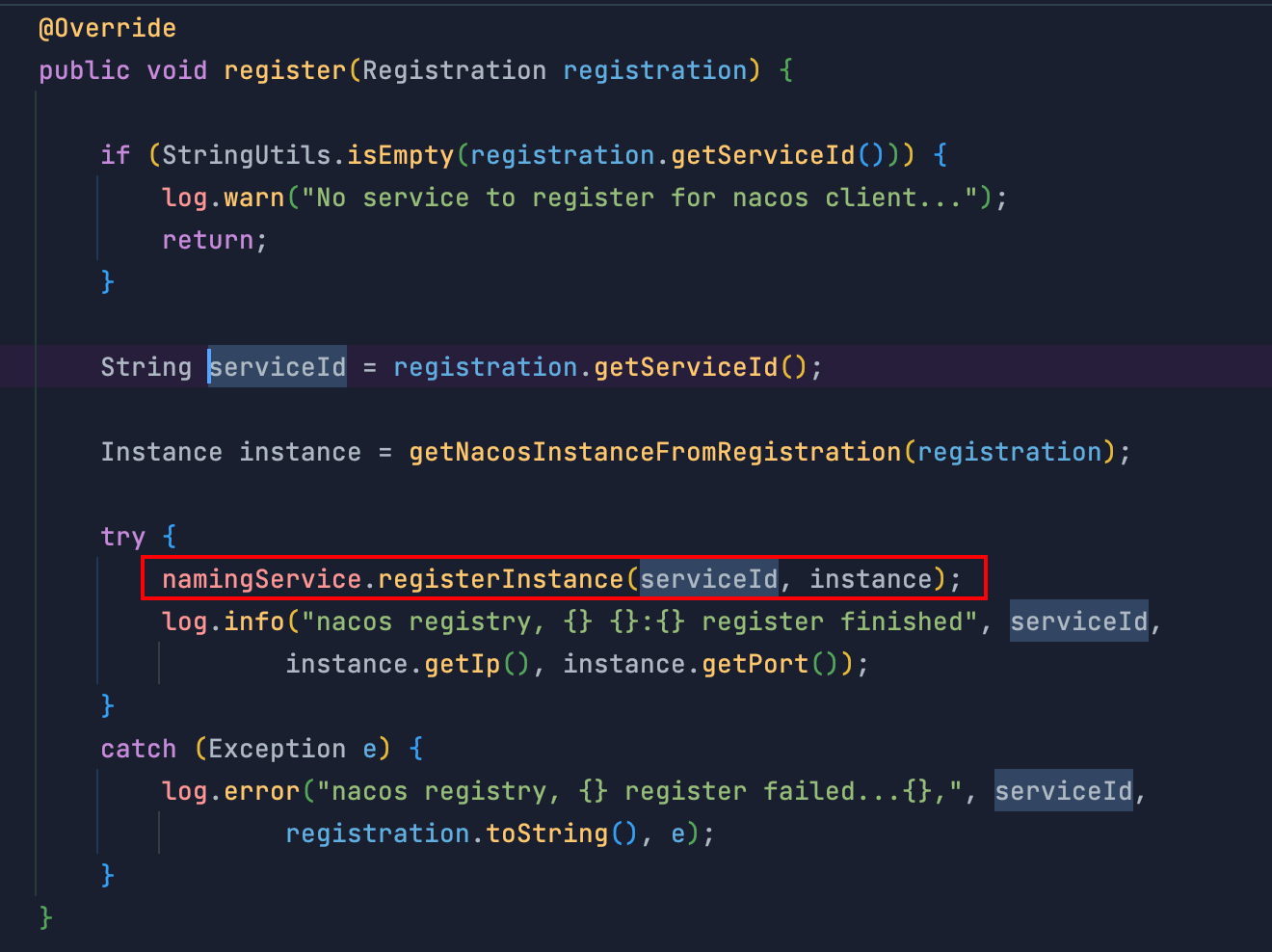

image-20230525234922854

image-20230525235248768

image-20230525235136568

继续NamingProxy#registerService()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public void registerService(String serviceName, String groupName, Instance instance) throws NacosException {

        NAMING_LOGGER.info("[REGISTER-SERVICE] {} registering service {} with instance: {}",
            namespaceId, serviceName, instance);

        final Map<String, String> params = new HashMap<String, String>(9);
        params.put(CommonParams.NAMESPACE_ID, namespaceId);
        params.put(CommonParams.SERVICE_NAME, serviceName);
        params.put(CommonParams.GROUP_NAME, groupName);
        params.put(CommonParams.CLUSTER_NAME, instance.getClusterName());
        params.put("ip", instance.getIp());
        params.put("port", String.valueOf(instance.getPort()));
        params.put("weight", String.valueOf(instance.getWeight()));
        params.put("enable", String.valueOf(instance.isEnabled()));
        params.put("healthy", String.valueOf(instance.isHealthy()));
        params.put("ephemeral", String.valueOf(instance.isEphemeral()));
        params.put("metadata", JSON.toJSONString(instance.getMetadata()));

        reqAPI(UtilAndComs.NACOS_URL_INSTANCE, params, HttpMethod.POST);

    }

去到nacos源码找到naming模块controller下的InstanceController

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
@RestController
@RequestMapping(UtilsAndCommons.NACOS_NAMING_CONTEXT + "/instance")
public class InstanceController {
	/**
     * Register new instance.
     *
     * @param request http request
     * @return 'ok' if success
     * @throws Exception any error during register
     */
    @CanDistro
    @PostMapping
    @Secured(parser = NamingResourceParser.class, action = ActionTypes.WRITE)
    public String register(HttpServletRequest request) throws Exception {

        final String namespaceId = WebUtils
                .optional(request, CommonParams.NAMESPACE_ID, Constants.DEFAULT_NAMESPACE_ID);
        final String serviceName = WebUtils.required(request, CommonParams.SERVICE_NAME);
        NamingUtils.checkServiceNameFormat(serviceName);

        final Instance instance = parseInstance(request);
        // 注册服务实例
        serviceManager.registerInstance(namespaceId, serviceName, instance);
        return "ok";
    }
}

可以看到它是通过registerInstance（）方法完成服务实例注册的

ServiceManager实现了RecordListener接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
@Component
public class ServiceManager implements RecordListener<Service> {
  /**
  * 服务注册
  */
	public void registerInstance(String namespaceId, String serviceName, Instance instance) throws NacosException {

        createEmptyService(namespaceId, serviceName, instance.isEphemeral());

        Service service = getService(namespaceId, serviceName);

        if (service == null) {
            throw new NacosException(NacosException.INVALID_PARAM,
                    "service not found, namespace: " + namespaceId + ", service: " + serviceName);
        }

        addInstance(namespaceId, serviceName, instance.isEphemeral(), instance);
    }
  /**
  * 添加实例
  */
  public void addInstance(String namespaceId, String serviceName, boolean ephemeral, Instance... ips)
            throws NacosException {

        String key = KeyBuilder.buildInstanceListKey(namespaceId, serviceName, ephemeral);

        Service service = getService(namespaceId, serviceName);

        synchronized (service) {
            List<Instance> instanceList = addIpAddresses(service, ephemeral, ips);

            Instances instances = new Instances();
            instances.setInstanceList(instanceList);
            //存放服务实例
            consistencyService.put(key, instances);
        }
    }
}

跟进consistencyService.put(key, instances);有一个实现类DistroConsistencyServiceImpl

image-20230526000333818

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
@DependsOn("ProtocolManager")
@org.springframework.stereotype.Service("distroConsistencyService")
public class DistroConsistencyServiceImpl implements EphemeralConsistencyService, DistroDataProcessor {
  @Override
      public void put(String key, Record value) throws NacosException {
          onPut(key, value);
          distroProtocol.sync(new DistroKey(key, KeyBuilder.INSTANCE_LIST_KEY_PREFIX), DataOperation.CHANGE,
                  globalConfig.getTaskDispatchPeriod() / 2);
      }
   public void onPut(String key, Record value) {

          if (KeyBuilder.matchEphemeralInstanceListKey(key)) {
              Datum<Instances> datum = new Datum<>();
              datum.value = (Instances) value;
              datum.key = key;
              datum.timestamp.incrementAndGet();
              dataStore.put(key, datum);
          }

          if (!listeners.containsKey(key)) {
              return;
          }
					//notifier是一个阻塞队列，我们把注册任务添加进去
          notifier.addTask(key, DataOperation.CHANGE);
      }

  public void addTask(String datumKey, DataOperation action) {

            if (services.containsKey(datumKey) && action == DataOperation.CHANGE) {
                return;
            }
            if (action == DataOperation.CHANGE) {
                services.put(datumKey, StringUtils.EMPTY);
            }
    				// 将请求放入阻塞队列里面
            tasks.offer(Pair.with(datumKey, action));
        }
}

notifier是一个阻塞队列我们把注册任务添加进去，然后执行，将请求写入和执行请求分开，异步处理。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
@DependsOn("ProtocolManager")
@org.springframework.stereotype.Service("distroConsistencyService")
public class DistroConsistencyServiceImpl implements EphemeralConsistencyService, DistroDataProcessor {

  // 创建notifie对象
  private volatile Notifier notifier = new Notifier();

  // 当前对象创建的时候将notifier任务加入线程池执行
  @PostConstruct
  public void init() {
    GlobalExecutor.submitDistroNotifyTask(notifier);
  }

  public class GlobalExecutor {
    private static final ScheduledExecutorService DISTRO_NOTIFY_EXECUTOR = ExecutorFactory.Managed
            .newSingleScheduledExecutorService(ClassUtils.getCanonicalName(NamingApp.class),
                    new NameThreadFactory("com.alibaba.nacos.naming.distro.notifier"));
  }

  // 将任务加入到线程池
  public static void submitDistroNotifyTask(Runnable runnable) {
        DISTRO_NOTIFY_EXECUTOR.submit(runnable);
  }

  public class Notifier implements Runnable {
    @Override
        public void run() {
            Loggers.DISTRO.info("distro notifier started");

            for (; ; ) {
                try {
                    // 取出任务
                    Pair<String, DataOperation> pair = tasks.take();
                  	// 处理任务
                    handle(pair);
                } catch (Throwable e) {
                    Loggers.DISTRO.error("[NACOS-DISTRO] Error while handling notifying task", e);
                }
            }
        }
  }
}

继续追踪DelegateConsistencyServiceImpl.Notifier#handle

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
private void handle(Pair<String, DataOperation> pair) {
            try {
                String datumKey = pair.getValue0();
                DataOperation action = pair.getValue1();
                // 从缓存中移除
                services.remove(datumKey);

                int count = 0;

                ConcurrentLinkedQueue<RecordListener> recordListeners = listeners.get(datumKey);
                if (recordListeners == null) {
                    Loggers.DISTRO.info("[DISTRO-WARN] RecordListener not found, key: {}", datumKey);
                    return;
                }

                for (RecordListener listener : recordListeners) {

                    count++;

                    try {
                      	// 通知数据已经变更
                        if (action == DataOperation.CHANGE) { // 发生变更
                            Datum datum = dataStore.get(datumKey);
                            if (datum != null) {
                                listener.onChange(datumKey, datum.value);
                            } else {
                                Loggers.DISTRO.info("[DISTRO-WARN] data not found, key: {}", datumKey);
                            }
                            continue;
                        }
                        // 通知数据删除
                        if (action == DataOperation.DELETE) { // 删除
                            listener.onDelete(datumKey);
                            continue;
                        }
                    } catch (Throwable e) {
                        Loggers.DISTRO.error("[NACOS-DISTRO] error while notifying listener of key: {}", datumKey, e);
                    }
                }

                if (Loggers.DISTRO.isDebugEnabled()) {
                    Loggers.DISTRO
                            .debug("[NACOS-DISTRO] datum change notified, key: {}, listener count: {}, action: {}",
                                    datumKey, count, action.name());
                }
            } catch (Throwable e) {
                Loggers.DISTRO.error("[NACOS-DISTRO] Error while handling notifying task", e);
            }
        }

追踪Service#onChange

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
@Override
    public void onChange(String key, Instances value) throws Exception {

        Loggers.SRV_LOG.info("[NACOS-RAFT] datum is changed, key: {}, value: {}", key, value);

        for (Instance instance : value.getInstanceList()) {

            if (instance == null) {
                // Reject this abnormal instance list:
                throw new RuntimeException("got null instance " + key);
            }

          	// 处理权重问题
            if (instance.getWeight() > 10000.0D) {
                instance.setWeight(10000.0D);
            }

            if (instance.getWeight() < 0.01D && instance.getWeight() > 0.0D) {
                instance.setWeight(0.01D);
            }
        }
        // 更新instance，核心在updateIPs这个方法中，参数1是instance集合，参数2时否是临时借点
        updateIPs(value.getInstanceList(), KeyBuilder.matchEphemeralInstanceListKey(key));

        recalculateChecksum();
    }

Service#updateIPs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
public void updateIPs(Collection<Instance> instances, boolean ephemeral) {
        Map<String, List<Instance>> ipMap = new HashMap<>(clusterMap.size());
        for (String clusterName : clusterMap.keySet()) {
            ipMap.put(clusterName, new ArrayList<>());
        }

        for (Instance instance : instances) {
            try {
                if (instance == null) {
                    Loggers.SRV_LOG.error("[NACOS-DOM] received malformed ip: null");
                    continue;
                }

                if (StringUtils.isEmpty(instance.getClusterName())) {
                  	// cluster是null就设置为default
                    instance.setClusterName(UtilsAndCommons.DEFAULT_CLUSTER_NAME);
                }

              // cluster不存在的话就创建对应的cluster
                if (!clusterMap.containsKey(instance.getClusterName())) {
                    Loggers.SRV_LOG
                            .warn("cluster: {} not found, ip: {}, will create new cluster with default configuration.",
                                    instance.getClusterName(), instance.toJson());
                    Cluster cluster = new Cluster(instance.getClusterName(), this);
                    cluster.init();
                    getClusterMap().put(instance.getClusterName(), cluster);
                }

                List<Instance> clusterIPs = ipMap.get(instance.getClusterName());
                if (clusterIPs == null) {
                    clusterIPs = new LinkedList<>();
                    ipMap.put(instance.getClusterName(), clusterIPs);
                }

                clusterIPs.add(instance);
            } catch (Exception e) {
                Loggers.SRV_LOG.error("[NACOS-DOM] failed to process ip: " + instance, e);
            }
        }

        for (Map.Entry<String, List<Instance>> entry : ipMap.entrySet()) {
            //make every ip mine
            List<Instance> entryIPs = entry.getValue();
            clusterMap.get(entry.getKey()).updateIps(entryIPs, ephemeral);
        }

        setLastModifiedMillis(System.currentTimeMillis());
        getPushService().serviceChanged(this);
        StringBuilder stringBuilder = new StringBuilder();

        for (Instance instance : allIPs()) {
            stringBuilder.append(instance.toIpAddr()).append("_").append(instance.isHealthy()).append(",");
        }

        Loggers.EVT_LOG.info("[IP-UPDATED] namespace: {}, service: {}, ips: {}", getNamespaceId(), getName(),
                stringBuilder.toString());

    }

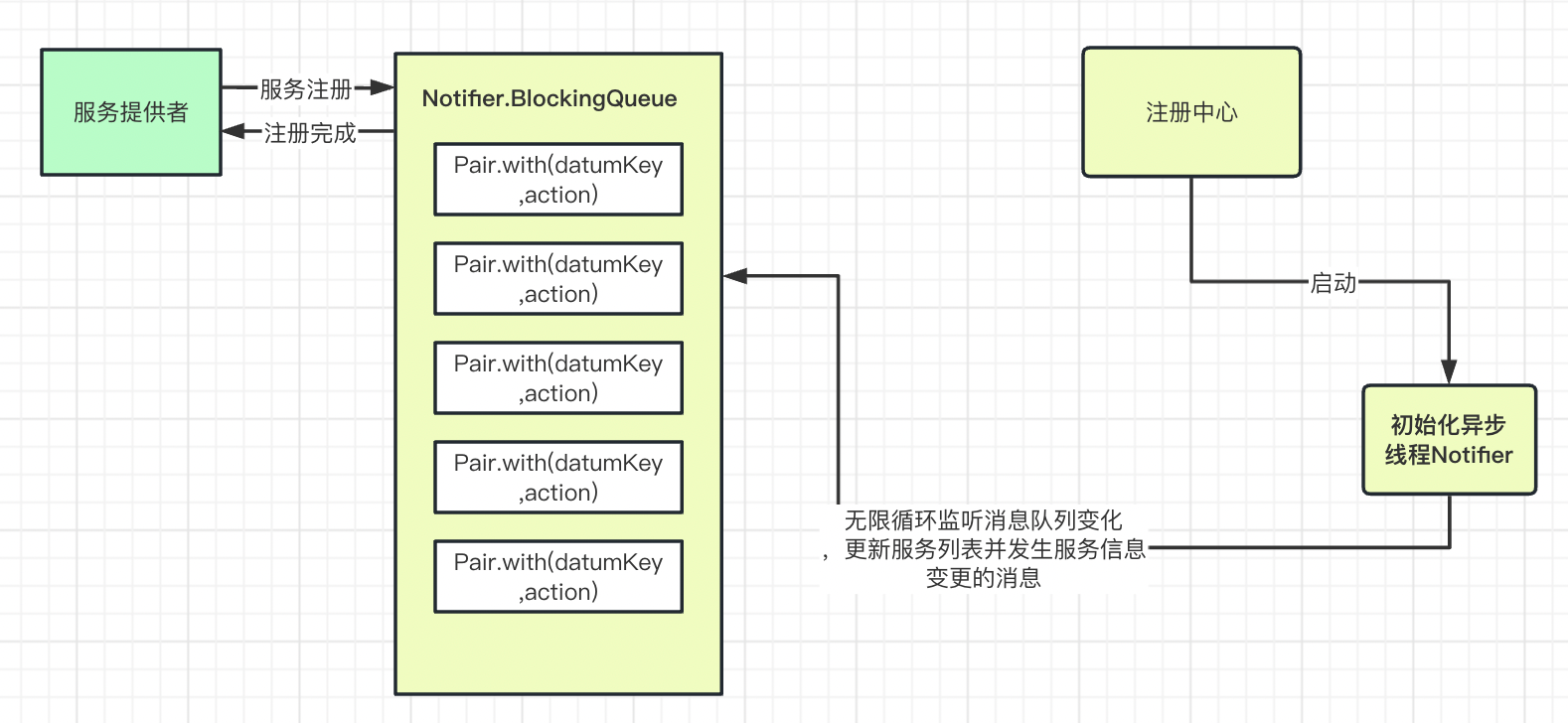

image-20230526005824980

总结：

server向nacos发起注册请求，并维持一个心态检测的定时任务，nacos会通过阻塞队列异步地处理这些请求，并实时的通过UDP推送到client，为防止UDP数据丢失，client也会通过定时任务每隔10s向nacos发送拉取请求，当服务列表改变时，nacos再返回。
